BNC with Belden Conformable 1673A

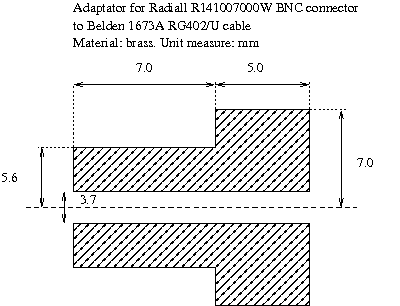

This is a design to be able to use a Radiall R141007000W BNC cable connector with a RG402/U compliant cable, especially designed for Belden Conformable 1673A.
Assembly instructions
- To assemble this connector you need a 3 pieces of the Radiall R1411007000W BNC connector:
- the pin
- the outer shell
- the nut
- Strip the last 5 mm of the cable and expose the internal conductor.
- Cut 2 mm of the outer braid and leave the insulator.
- Solder the pin
- Put the nut on the cable (you don't want to forget it on the table…)
- Put the adaptor
- Put the pin in its place in the outer shell
- Slide the adaptor in the outer shell; when in position solder the adaptor to the braid
- Tight the nut
